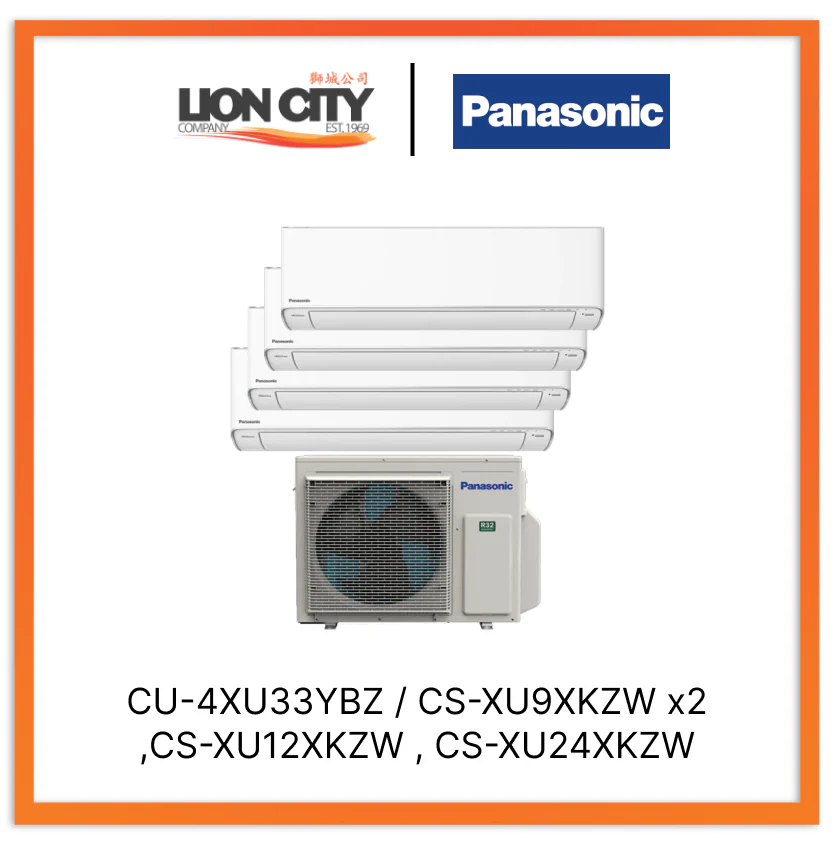

Panasonic Xu System 4 Aircon (9K X2 + 12K + 24K)

CU-4XU33YBZ

• Model CU-4XU33YBZ
• Cooling Capacity (min-max) 7.00 (2.80 ~ 11.20) kW
• 23,900 (9,550 - 38,200) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity17.6 kW
• Maximum Connectable Indoor 4 Units
• Height 695 mm
• Width 875 (+95) mm

CS-XU9XKZW

• Model Indoor (50 Hz):CS-XU9XKZW
• Outdoor:CU-XU9XKZW
• Cooling Capacity (min-max):2.70 (0.98-3.60) kW
• 9,210 (3,340-12,300) Btu/h
• COP (min-max):5.19 (5.30-4.00) W/W
• EER (min-max):17.71 (18.05-13.67) Btu/hW
• Weighted COP:5.8 W/W
• Power Supply:Outdoor

CS-XU12XKZW

• Model Indoor (50 Hz) CS-XU12XKZW
• OutdoorCU-XU12XKZW
• Cooling Capacity (min-max) 3.70 (1.02-4.50) kW
• 12,600 (3,480-15,300) Btu/h
• COP (min-max) 4.46 (4.64-3.75) W/W
• EER (min-max) 15.18 (15.82-12.75) Btu/hW
• Weighted COP 5.67 W/W

CS-XU24XKZW

• Model Indoor (50 Hz) CS-XU24XKZW
• Outdoor CU-XU24XKZW
• Cooling Capacity (min-max) 6.10 (1.12-7.18) kW
• 20,800 (3,820-24,500) Btu/h
• COP (min-max) 4.01 (4.48-3.68) W/W
• EER (min-max) 13.68 (15.28-12.56) Btu/hW
• Weighted COP 5.19 W/W
• Electrical Data Voltage 220-240 V
• Power Supply Outdoor
