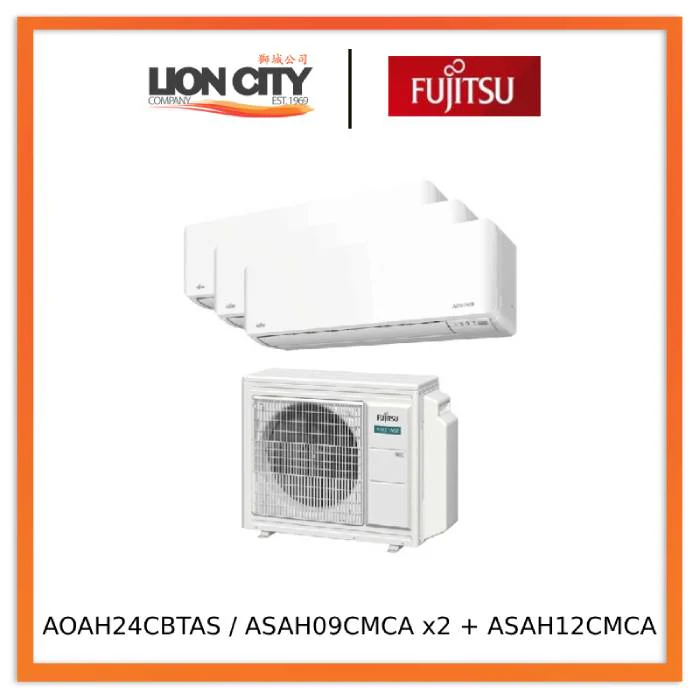

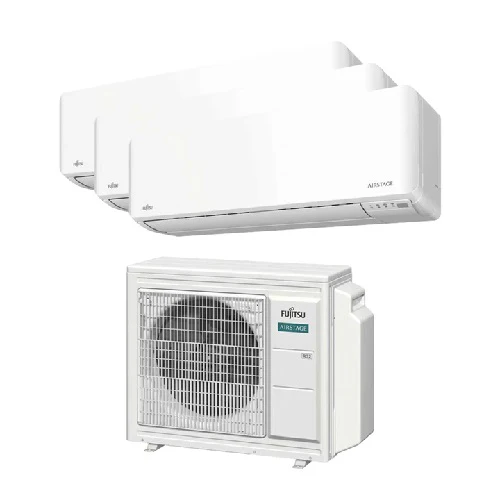

Fujitsu AOAH24CBTAS / ASAH09CMCA x2 + ASAH12CMCA Airstage System 3 Aircon (9k X2 + 12k)

SPECIFICATIONS

Model Number    ASAH09CM

• Power Source     Single Phase, ~230V, 50hz
• Airflow Rate     H/M/L/Q: 770/560/430/250
• Sound Pressure Level    H/M/L/Q: 43/36/30/21
• Net Dimensions HWD    270 x 834 x 222 mm
• Net Weight    10 kg
• Connection Pipe Diameter    Liquid: 6.35 mm
• Gas: 9.52 mm

Model Number ASAH12CM

• Power Source  Single Phase, ~230V, 50hz
• Airflow Rate H/M/L/Q: 800/600/450/250
• Sound Pressure Level H/M/L/Q: 44/37/30/21
• Net Dimensions HWD  270 x 834 x 222 mm
• Net Weight  10 kg
• Connection Pipe Diameter  Liquid: 6.35 mm
• Gas: 9.52 mm

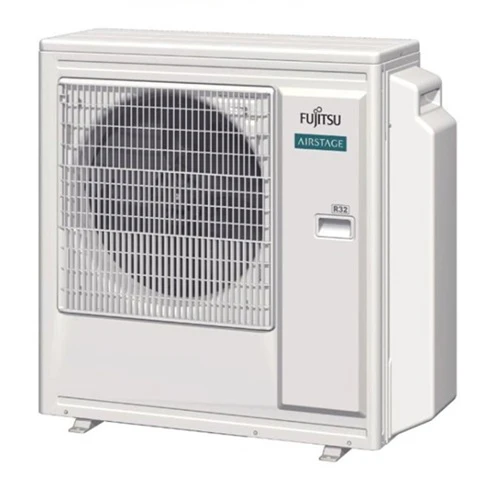

Model Number    AOAH24CBTA

• Power Source V/Ø/Hz    230/1/50
• Rated Capacity (min-max)    6.0 (1.8-9.0) kW
• Sound Pressure Level    53 dBA
• Net Dimensions HWD    716 x 820 x 315 mm
• Net Weight    48 kg
• Connection Pipe Diameter    Small (Liquid): 6.35 x 3 mm
• Large (Gas): 9.52 × 2, 12.7 × 1 mm
• Max. Pipe Length (Total / Each)    50 / 25
• Max. Height Difference    Between Outdoor Unit and Each Indoor Units: 15m
• Between Indoor Units: 10m
• Cooling Operation Range    10 to 46 °CDB
• Refrigerant    R32
