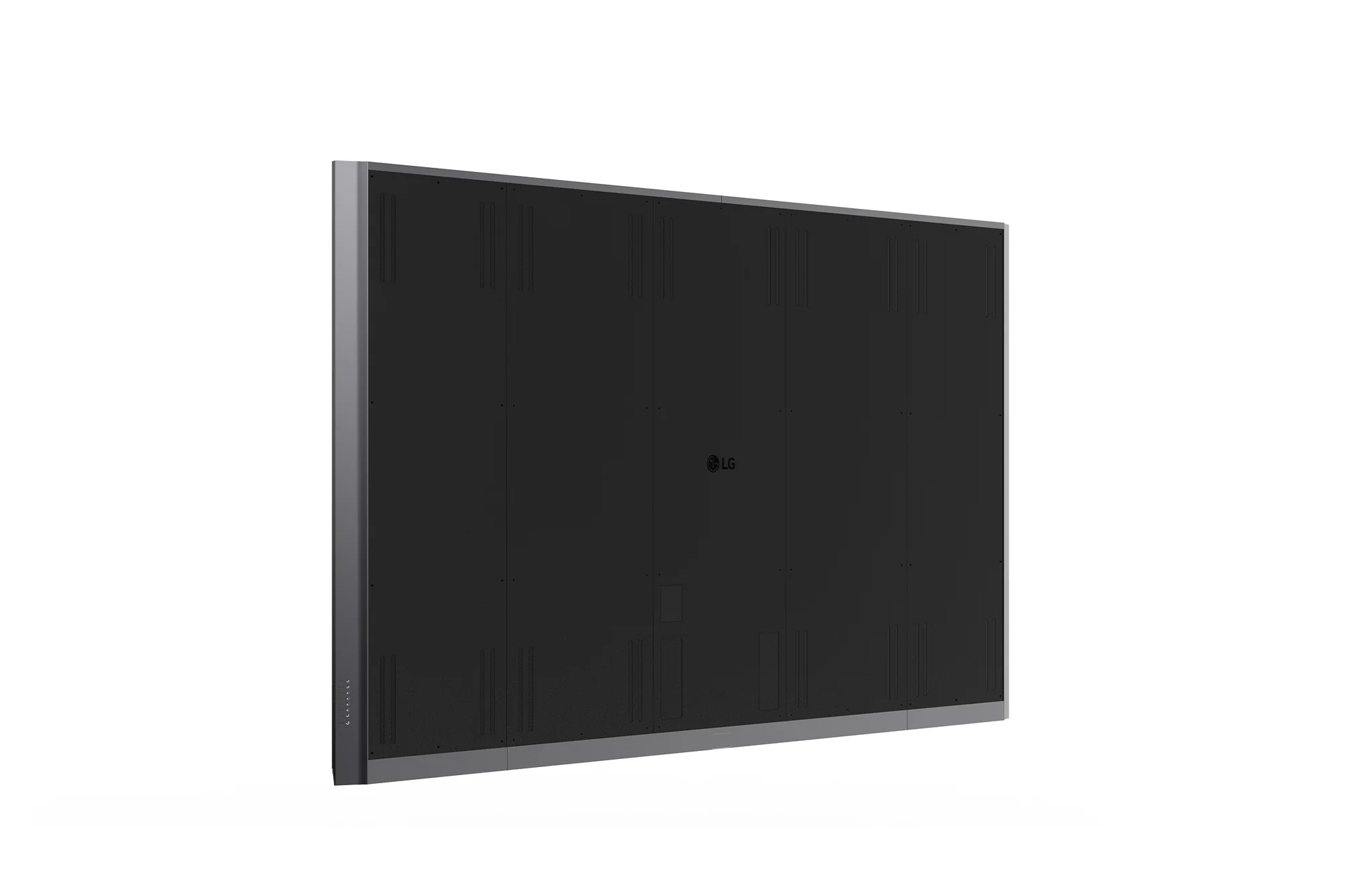

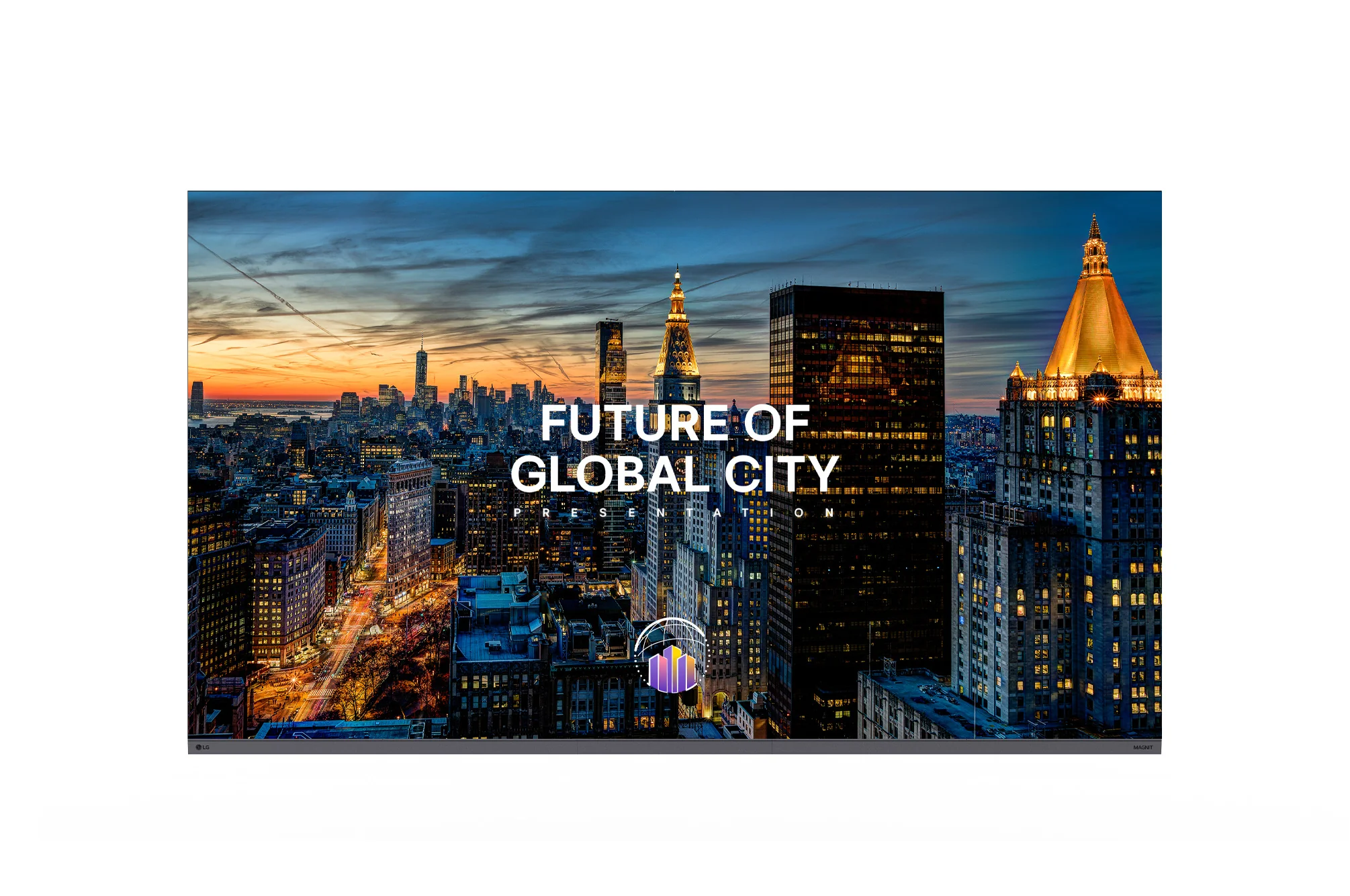

LG LAAA015 MAGNIT Indoor LED Signage

Physical Parameter

• Pixel Configuration Micro LED
• Pixel Pitch (mm) 1.56
• Module Dimensions (W x H, mm) 300 × 112.5
• Screen Resolution (WxH) 1,920 × 1,080
• Screen Dimension (W x H x D,mm) 3,005 × 1,742 × 54.9 (Thickest 57.4)
• Screen Weight (kg) 190
• No. of Modules per Screen (W x H) 10 × 15 (Total 150)
• Screen Surface Area (㎡) 5.063
• Physical Pixel Density (pixels/m²) 409,600
• Flatness of Cabinet ±0.2 mm
• Cabinet Material Steel
• Service Access Front

Optical Parameter

• Max. Brightness (After Calibration) 500 / (Peak.) 1000
• Color Temperature (K) 3,200-9,300
• Visual Viewing Angle (Horizontal/Vertical) 160 / 160
• Brightness Uniformity 95%
• Color Uniformity ±0.015 Cx, Cy
• Contrast Ratio (10 lux) 25,000 : 1 @ 10lux
• Processing Depth (bit) 20 (HDR10, HDR10 Pro)
