LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series
HomeStore

LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series

LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series

$49,428.97
LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series—
$49,428.97

The Story

Physical Parameter
  • Pixel Configuration Single SMD
  • Pixel Pitch (mm) 1.88
  • Module Dimensions (W x H, mm) 300 × 168.75
  • Screen Resolution (WxH) 1,920 x 1,080
  • Screen Dimension (W x H x D,mm) 3,604 × 2,029 × 45.5 (Thickest 81)
  • Screen Weight (kg) 190
  • No. of Modules per Screen (W x H) 12 × 12 (Total 144)
  • Screen Surface Area (㎡) 7.29
  • Physical Pixel Density (pixels/m²) 284,444
  • Flatness of Cabinet ±0.2 mm
  • Cabinet Material Aluminum
  • Service Access Front

Optical Parameter
  • Max Brightness (After Calibration, nit) 500
  • Color Temperature (K) 3,200 - 9,300
  • Visual Viewing Angle (Horizontal/Vertical) 160 / 160
  • Brightness Uniformity 98%
  • Color Uniformity ±0.015Cx,Cy
  • Contrast Ratio 3000 : 1
  • Processing Depth (bit) 16 (HDR10, HDR10 Pro)


Power Consumption (W/Screen, Max.) 2,200
  • Power Consumption (W/Screen, Avg.) 880
  • Power Consumption (W/m², Max.) 302
  • Power Consumption (BTU/h/Screen, Max.) 7,506
  • Power Consumption (BTU/h/Screen, Avg.) 3,004
  • Power Consumption (BTU/h/㎡, Max.) 1,030
  • Power Supply (V) 100 to 240
  • Frame Rate (Hz) 50 / 60
  • Refresh Rate (Hz) 3,000
LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

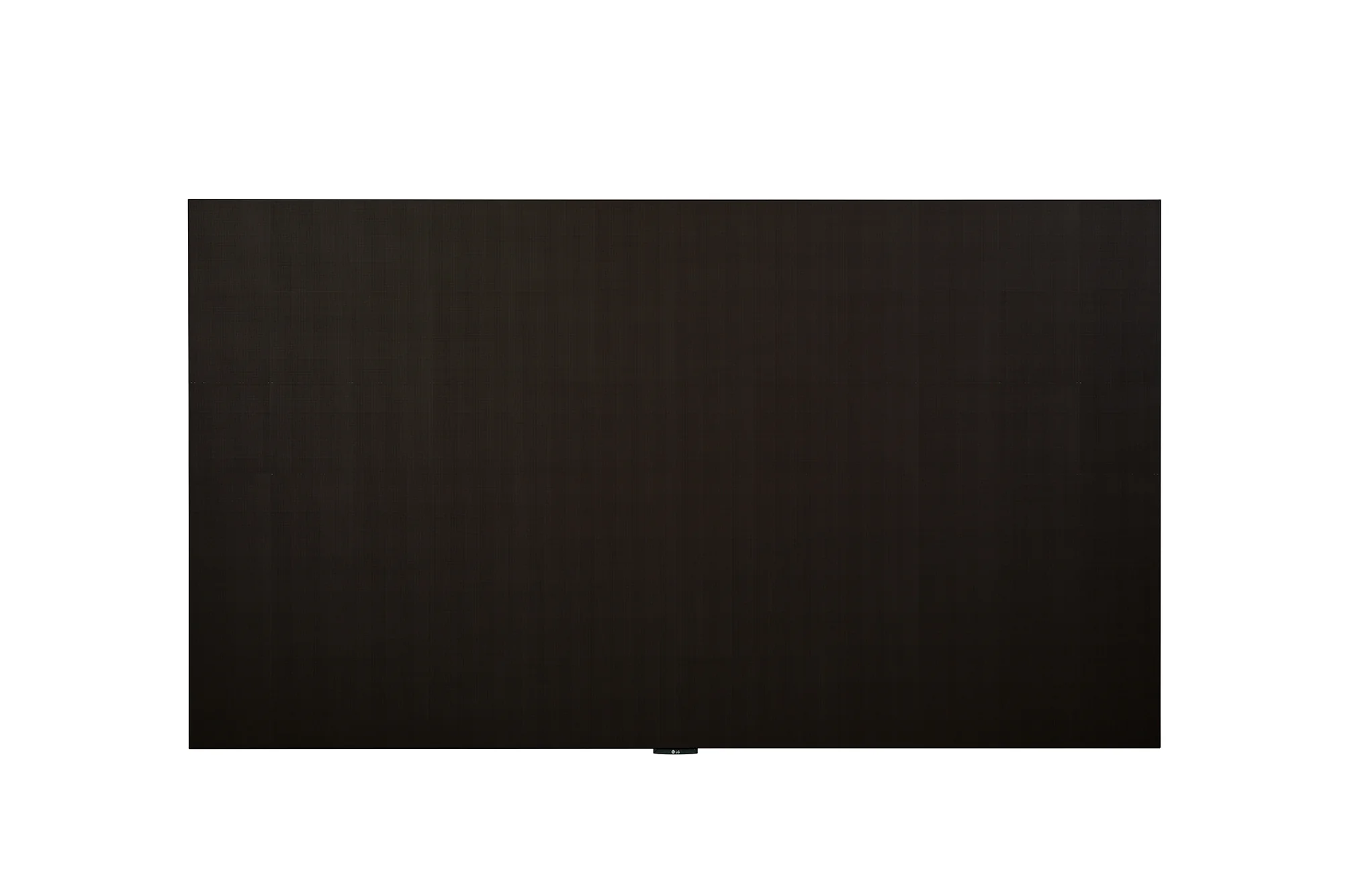

LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

LG LAEC018-GN2 163" LG LED Signage All-in-One Smart Series - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Physical Parameter
  • Pixel Configuration Single SMD
  • Pixel Pitch (mm) 1.88
  • Module Dimensions (W x H, mm) 300 × 168.75
  • Screen Resolution (WxH) 1,920 x 1,080
  • Screen Dimension (W x H x D,mm) 3,604 × 2,029 × 45.5 (Thickest 81)
  • Screen Weight (kg) 190
  • No. of Modules per Screen (W x H) 12 × 12 (Total 144)
  • Screen Surface Area (㎡) 7.29
  • Physical Pixel Density (pixels/m²) 284,444
  • Flatness of Cabinet ±0.2 mm
  • Cabinet Material Aluminum
  • Service Access Front

Optical Parameter
  • Max Brightness (After Calibration, nit) 500
  • Color Temperature (K) 3,200 - 9,300
  • Visual Viewing Angle (Horizontal/Vertical) 160 / 160
  • Brightness Uniformity 98%
  • Color Uniformity ±0.015Cx,Cy
  • Contrast Ratio 3000 : 1
  • Processing Depth (bit) 16 (HDR10, HDR10 Pro)


Power Consumption (W/Screen, Max.) 2,200
  • Power Consumption (W/Screen, Avg.) 880
  • Power Consumption (W/m², Max.) 302
  • Power Consumption (BTU/h/Screen, Max.) 7,506
  • Power Consumption (BTU/h/Screen, Avg.) 3,004
  • Power Consumption (BTU/h/㎡, Max.) 1,030
  • Power Supply (V) 100 to 240
  • Frame Rate (Hz) 50 / 60
  • Refresh Rate (Hz) 3,000
