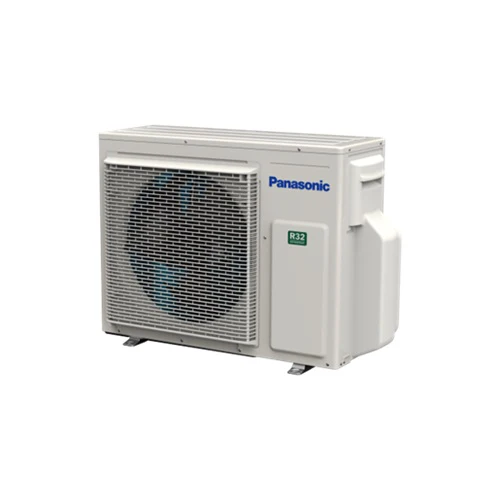

Panasonic CU-4XU33YBZ / CS-XU9XKZW x1 + CS-XU12XKZW x1 + CS-XU24XKZW x1 Xu System 3 Aircon (9k + 12k + 24k)

Specifications:

Comfort Features:

• iAUTO-X, Humidity Sensor, ECO Mode with A.I. (Limited function when connected to multi-split system.)
• Inverter Control
• Sleep Mode
• Quiet Mode
• Soft Dry Operation Mode
• Personal Airflow Creation

Convenience Features:

• 24-Hour Dual ON & OFF Real Setting Timer
• LCD Wireless Remote Control
• Wireless LAN Remote Control For Internet Connection (Built-In)

Reliability Features:

• Random Auto Restart (32 Restart Patterns)
• Blue Fin Condenser
• Long Piping (max.): 20 m
• Top Panel Maintenance Access
• Self-Diagnostic Function

Cooling Capacity (min-max) [9K]:

• 2.70 (0.98-3.60) kW
• 9,210 (3,340-12,300) Btu/h

Cooling Capacity (min-max) [12K]:

• 3.70 (1.02-4.50) kW
• 12,600 (3,480-15,300) Btu/h

Cooling Capacity (min-max) [24K]:

• 6.10 (1.12-7.18) kW
• 20,800 (3,820-24,500) Btu/h

Electrical Data [9K]:

• Voltage: 220-240 V
• Current: 2.6-2.4 A
• Power Input (min-max): 520 (185-900) W
• 5 Ticks

Electrical Data [12K]:

• Voltage: 220-240 V
• Current: 3.9-3.7 A
• Power Input (min-max): 830 (220-1,200) W
• 4 Ticks

Electrical Data [24K]:

• Voltage: 220-240 V
• Current: 7.1-6.6 A
• Power Input (min-max): 1,520 (250-1,950) W
• 3 Ticks

Air Circulation:

• Indoor: 11.8 m³/min (415 ft³/min)

Noise Level (220V-2240V):

• 9K (H / L / Q-Lo): 42/26/19 dB(A)
• 18K (H / L / Q-Lo): 44/32/27 dB(A)

Refrigerant Pipe Diameter:

• Liquid Side: ø 6.35 mm (1/4 inch)
• Gas Side: ø 9.52 mm (3/8 inch)
• Power Supply    Outdoor
