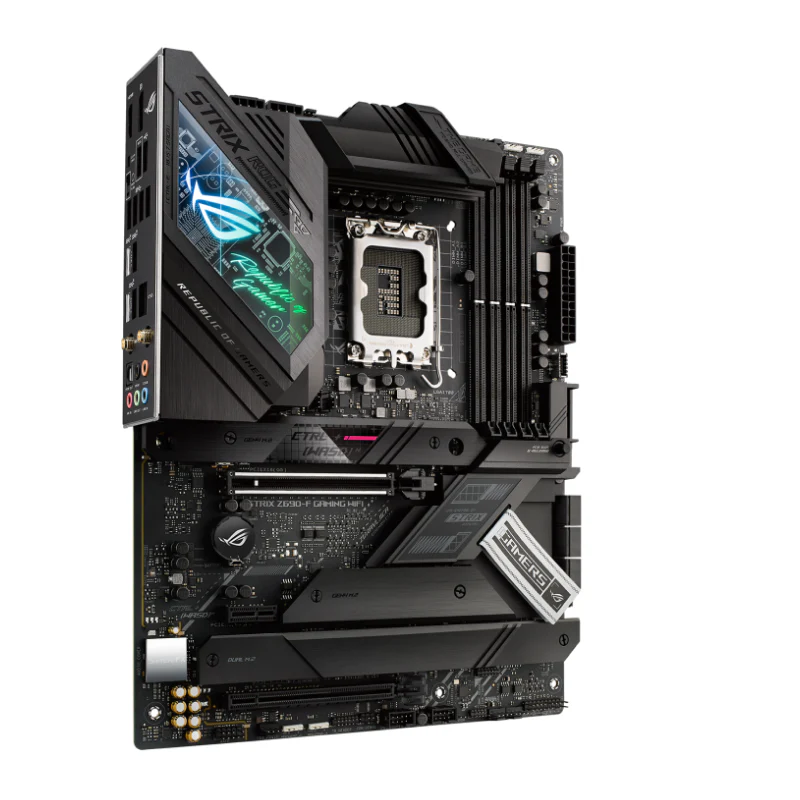

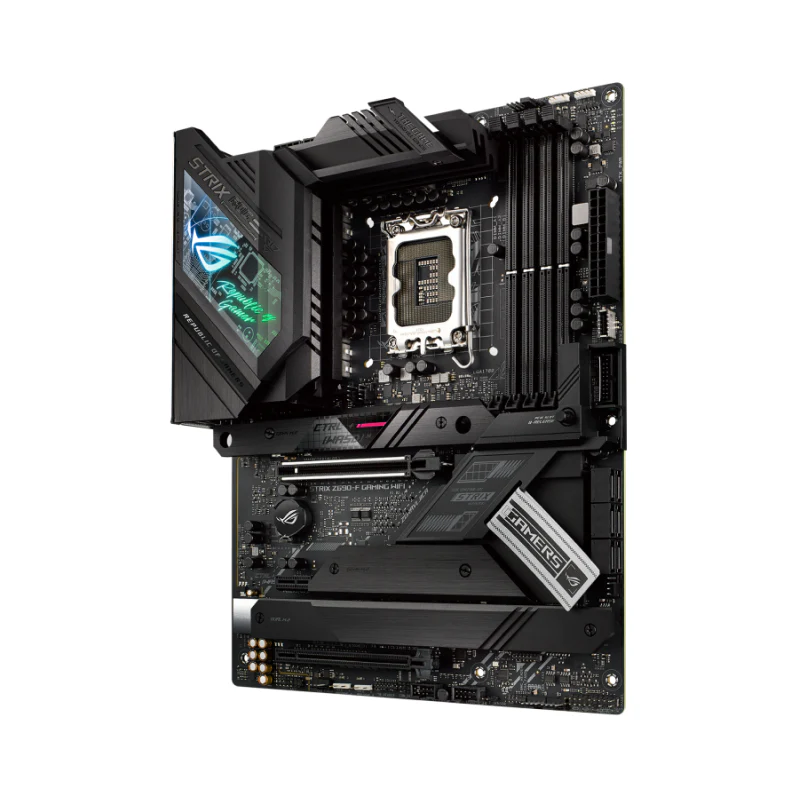

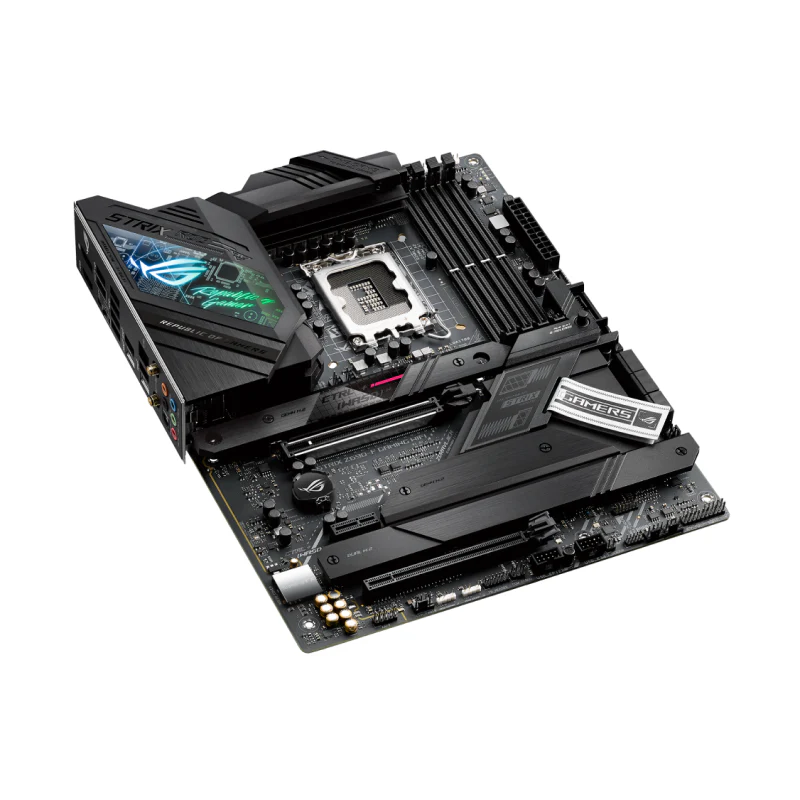

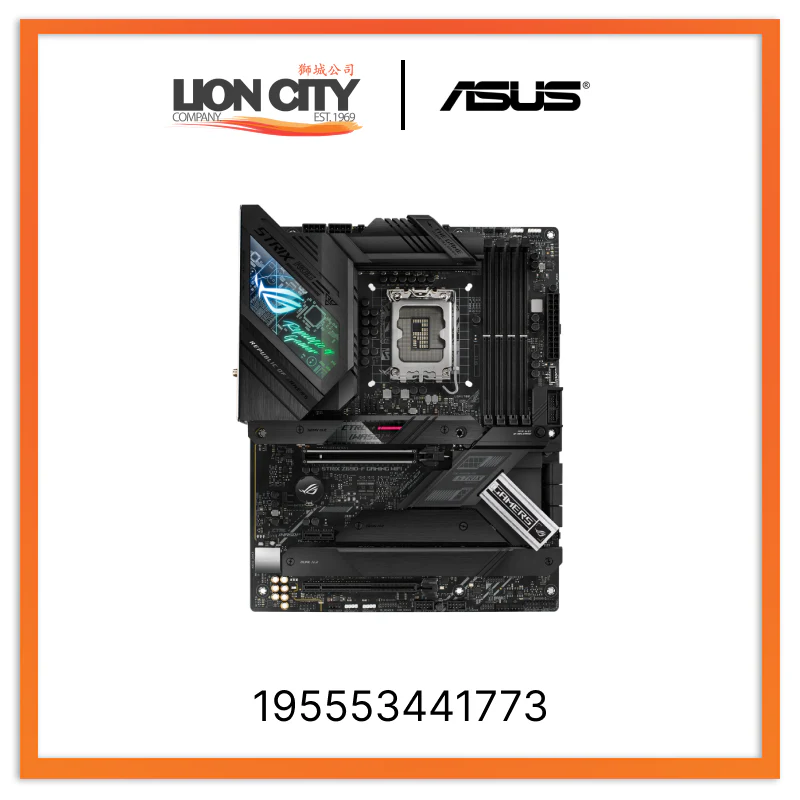

ROG STRIX Z690-F GAMING WIFI 195553441773 Motherboards

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
•
• * Refer to www.asus.com for CPU support list.
•
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
•
• Dual Channel Memory Architecture
•
• Supports Intel® Extreme Memory Profile (XMP)
•
• OptiMem II
•
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

• 1 x DisplayPort**
•  1 x HDMI®***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
•
• ** Support 8K@60Hz as specified in DisplayPort 1.4
•
• *** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 14th & 13th & 12th Gen Processors*
•
• 1 x PCIe 5.0 x16 slot
•
• - Intel® 13th & 12th support PCIe 5.0 x16 mode
•
• Intel® Z690 Chipset
•
• 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)
•
• 1 x PCIe 3.0 x1 slot
•
• * Please check PCIe bifurcation table in support site.
