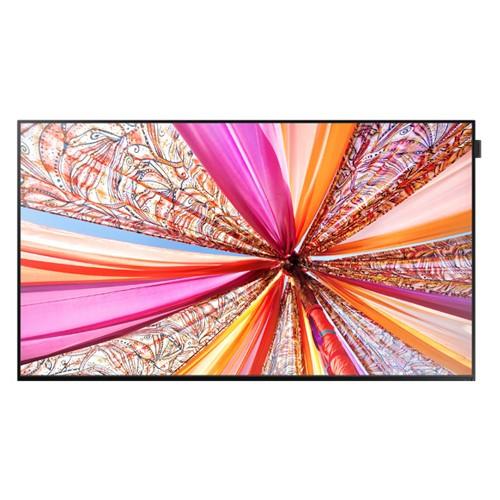

Samsung 55" Slim Direct-Lit LED Display DB55D
HomeStore

Samsung 55" Slim Direct-Lit LED Display DB55D

Samsung 55" Slim Direct-Lit LED Display DB55D

$1,910.57
Samsung 55" Slim Direct-Lit LED Display DB55D—
$1,910.57

The Story

Description:



Create stunning and seamless video walls in full HD resolution thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. Combined with a sleek industrial design and slim 2" chassis depth, you can captivate your audience in a moment and leave a lasting impression on the 55" screen.



  • Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
  • Sleek Industrial Design with Symmetrical 10.5mm Bezel
  • Slim 2" Chassis Depth with Slim-Direct LED Backlight Technology
  • PC-less Touch Support with Optional Touch Overlay



Series Name
Series Name DB
 Display
Panel Technology 120Hz Slim D-LED BLU
Aspect Ratio 16:9
Contrast Ratio (Typical) 5000:1
Response Time

8ms


Connectivity
Input Video: VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI, Audio: Stereo Mini Jack
Output Audio: Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack, RJ45
Sensor IR, Ambient Light
 Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 86W / 176W
Power Consumption (Standby) < 0.5W
 Environmental Conditions
Operating Temperature 0C - 40C
Operating Humidity 10%~80%
 Features
Special Hardware: Super Clear Coating, Temperature Sensor, Videowall (15x15), Pivot Display, Clock Battery (80hrs Clock Keeping), SD Card Slot
Software: Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
SMART Signage Platform Yes
Built-in Tuner Yes
Media Player Type Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
VESA Standard Wall-Mount Interface 400 x 400mm
Wi-Fi Yes
Built-in Speakers Yes
 Dimensions
Without Stand (W x H x D) 48.4" X 27.8" X 2.0"
Packaging (W x H x D) 53.1" X 31.9" X 5.8"
Bezel Width 9.5mm (Top/Side), 15.0mm (Bottom)
 Weight
Set 33.5 lb.
Package 42.5 lb.
 Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
 Accessories
Included in Box Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional Wall Mount WMN4270SD, WMN250MD
Optional Stand STN-L4055AD, STN-L4655E
Touch Overlay CY-TD55
Optional Media Player Embbeded, SBB-C (Attachable)
 Green Management
ENERGY STAR Certified Yes
RoHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Packing Materials Recyclable
 Package Contents
Manuals Included
Cables Included
Optional Accessories CML450D (Ceiling Mount), Foot Stand
