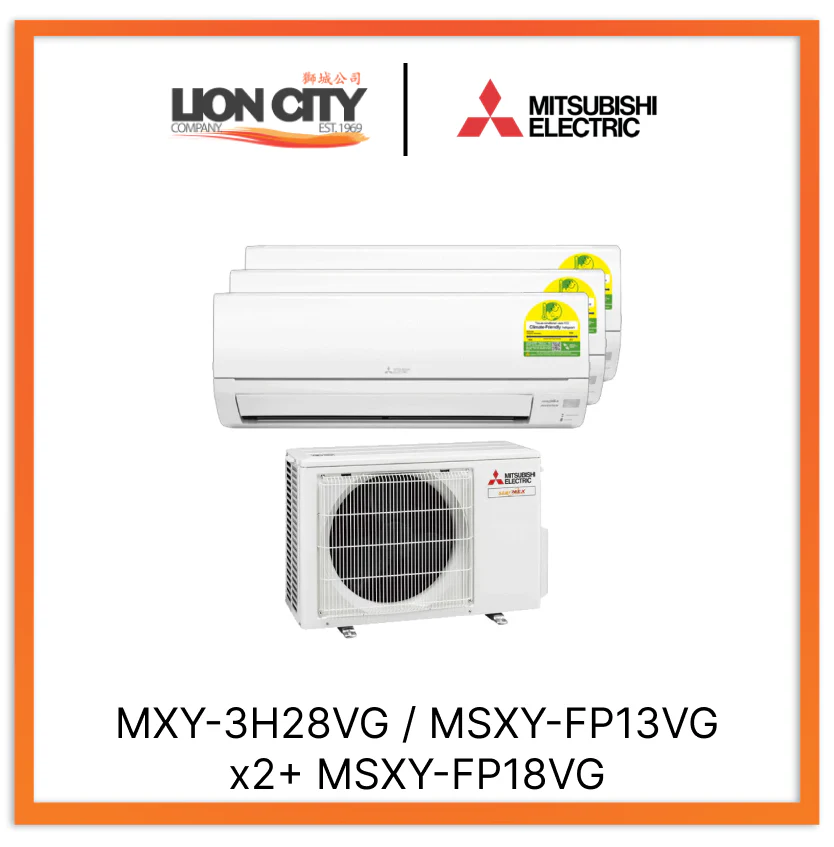

Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K)
HomeStore

Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K)

Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K)

$1,139.24

Original: $3,254.96

-65%
Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K)—

$3,254.96

$1,139.24

The Story

MSXY-FP13VG

  • MODEL - INDOOR UNIT MSXY-FP13VG
  • Rated Capacity 3.5 W
  • Power Input 0.036 kW
  • Running Current 0.33 A
  • Airflow Rate 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level * 19-24-30-36-47 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm


MSXY-FP18VG

  • Rated Capacity 5.0 kW
  • Power Input 0.042 kW
  • Running Current 0.38 A
  • Airflow Rate 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level *28-33-38-44-49 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm

MXY-3H28VG

  • Capacity (Min - Max) 6.5 (1.3 - 8.9) kW
  • Power Input 1.33 kW
  • Full load COP 4.89
  • Weighted COP ** 6.05
  • Starting Current 5.93 A
  • Running Current 5.93 A
  • Airflow 38.7 CMM (m³/min)
  • Dimension (W X D X H) 840 x 330 x 710
  • Net Weight 54 kg
  • Outdoor Sound Level * 49 dbA
  • Connection Method Flared
  • External Piping Diameter Gas (ø): 3 no X 9.52 mm
  • Liquid (ø): 3 no X 6.35 mm
  • Piping Length Max Length (Each): 25 m
  • Max. Length: 60 m
  • Max. Height: 15 m
  • Refrigerant R32
  • No. of connectable indoor units (System) 230, 1, 50
    Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Mitsubishi Electric Starmex System 3 Aircon (12K X2 + 18K) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    MSXY-FP13VG

    • MODEL - INDOOR UNIT MSXY-FP13VG
    • Rated Capacity 3.5 W
    • Power Input 0.036 kW
    • Running Current 0.33 A
    • Airflow Rate 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
    • Sound Level * 19-24-30-36-47 dB(A)
    • Dimension (W X D X H ) 799 x 232 x 290 mm
    • Net Weight 9 kg
    • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm


    MSXY-FP18VG

    • Rated Capacity 5.0 kW
    • Power Input 0.042 kW
    • Running Current 0.38 A
    • Airflow Rate 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
    • Sound Level *28-33-38-44-49 dB(A)
    • Dimension (W X D X H ) 799 x 232 x 290 mm
    • Net Weight 9 kg
    • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm

    MXY-3H28VG

    • Capacity (Min - Max) 6.5 (1.3 - 8.9) kW
    • Power Input 1.33 kW
    • Full load COP 4.89
    • Weighted COP ** 6.05
    • Starting Current 5.93 A
    • Running Current 5.93 A
    • Airflow 38.7 CMM (m³/min)
    • Dimension (W X D X H) 840 x 330 x 710
    • Net Weight 54 kg
    • Outdoor Sound Level * 49 dbA
    • Connection Method Flared
    • External Piping Diameter Gas (ø): 3 no X 9.52 mm
    • Liquid (ø): 3 no X 6.35 mm
    • Piping Length Max Length (Each): 25 m
    • Max. Length: 60 m
    • Max. Height: 15 m
    • Refrigerant R32
    • No. of connectable indoor units (System) 230, 1, 50
