The Story

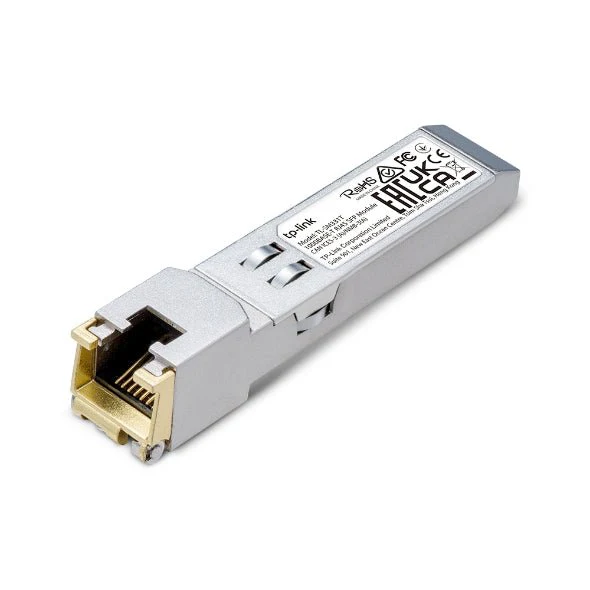

The TP-Link Omada SM331T is a 1000BASE-T RJ45 SFP module that provides Gigabit Ethernet connectivity over twisted pair copper cables. It supports data transfer rates up to 1000 Mbps and is compatible with TP-Link Omada switches, routers, and other SFP-compatible networking equipment.
The module features a plug-and-play design for easy installation and is built with robust protection against electromagnetic interference. It operates within a temperature range of 0°C to 70°C and has a typical power consumption of ≤0.5W.
With dimensions of 54 x 14.2 x 9 mm, the SM331T is a compact and energy-efficient solution for expanding network infrastructure in data centers, businesses, or enterprise environments.
| Model | TP-Link Omada 1000BASE-T RJ45 SFP Module (SM331T) |
| Data Rate | 1000 Mbps (1 Gbps) |
| Connector | RJ45 |
| Standard | IEEE 802.3ab |
| Cable Distance | Up to 100 m (Cat5e or above) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (Non-condensing) |
| Power Consumption | ≤ 0.5W |
| Dimensions | 54 x 14.2 x 9 mm |
Description
The TP-Link Omada SM331T is a 1000BASE-T RJ45 SFP module that provides Gigabit Ethernet connectivity over twisted pair copper cables. It supports data transfer rates up to 1000 Mbps and is compatible with TP-Link Omada switches, routers, and other SFP-compatible networking equipment.
The module features a plug-and-play design for easy installation and is built with robust protection against electromagnetic interference. It operates within a temperature range of 0°C to 70°C and has a typical power consumption of ≤0.5W.
With dimensions of 54 x 14.2 x 9 mm, the SM331T is a compact and energy-efficient solution for expanding network infrastructure in data centers, businesses, or enterprise environments.
| Model | TP-Link Omada 1000BASE-T RJ45 SFP Module (SM331T) |
| Data Rate | 1000 Mbps (1 Gbps) |
| Connector | RJ45 |
| Standard | IEEE 802.3ab |
| Cable Distance | Up to 100 m (Cat5e or above) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (Non-condensing) |
| Power Consumption | ≤ 0.5W |
| Dimensions | 54 x 14.2 x 9 mm |
